 KF5000V Multibay Filter with Integral Vortex
KF5000V Multibay Filter with Integral Vortex Ref: MBVKF5
The KF5000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of up to 5000 litres and a maximum flow rate of 3000 litres ph. However, with lighter stocking densities or in fish free ponds the KF5000 will comfortably cope with larger volumes. Complete with a new media package for 2001 consisting of: filter brushes, Japanese matting, wadding and flocor. The integral Vortex enhances the unit's performance and reduces the maintenance intervals. It is suitable for Pump or Gravity feed. Fitted with 3” inlet and 2” outlet.

5000-V (4 Bay) 51” x 17” x 19” Deep
Maximum flow rate 3,000 litre per hour
Inlet size 3” - Outlet 2” solvent (Pump Fed Unit has 2 x 2" Solvent Outlets)
Can also be used as a pump fed filter by reducing inlet
Three drainage points - (Accepts 1.5" solvent weld pipe for remote drainage)
Media: flocor, matting cartridge, brushes, and filter wadding

NOTE Media supplied only where specified in price options,

PLEASE NOTE Lids are no longer supplied with these units

Please Note at this time we can only offer Delivery Charges on line to addresses in England (excluding Cornwall). For all other Areas please Call 01925 639333 to Obtain Delivery Charges. Delivery Dates can be 7 to 10 days for this item

Select Filter Option



Pump Fed 5000 Vortex Filter System

Pump Fed 5000 Vortex Filter System
Ref: MB05ASSY
Parts to assemble a Pump Fed 5000 Vortex Filter includes 15watt UV, Media, and Drains

(Pump Fed Unit has 2 x 2" Solvent Outlets)

Does Not Include Pump

PLEASE NOTE Lids are no longer supplied with these units


Price: £344.69 (Including VAT at 20%)



KF10000V Multibay Filter With Integral Vortex
KF10000V Multibay Filter With Integral Vortex Ref: MBVKF10

The KF10000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of up to 10,000 litres and a maximum flow rate of 6,000 litres ph. However, with lighter stocking densities or in fish free ponds the KF10000 will comfortably cope with larger volumes. The integral Vortex enhances the unit's performance and reduces the maintenance intervals

The media package consists of:
Bay 1 Eight 16" long x 8" diameter polypropylene filter brushes - They are of a semi-rigid construction with a wire loop at the end for easy installation.

Bay 2 Blue matting - This is an excellent filter media as it has excellent bio-mass retention and its open texture removes larger particles from the water.

Bay 3 Six layers of sponge with varying layers of porosity, two large foam blocks and a layer of flocor.

Bay 4 Filled with Flocor. The large surface area of Flocor tubes makes it an ideal filter media.

Specifications

81” long x 21” wide x 24” Deep
Maximum flow rate 6,000 litre per hour
Three drainage points - (Accepts 1.5" solvent weld pipe for remote drainage)
Supplied with 3 1.5" Kockney Koi Ball Valves
The pump fed model has a 4" inlet and outlet while the gravity fed model has a 4" inlet and 1.5" outlet.

NOTE Media supplied only where specified in price options,

PLEASE NOTE Lids are no longer supplied with these units


Please Note at this time we can only offer Delivery Charges on line to addresses in England (excluding Cornwall). For all other Areas please Call 01925 639333 to Obtain Delivery Charges. Delivery Dates can be 7 to 10 days for this item


Select Filter Options



Pump Fed 10000 Vortex Filter System

Pump Fed 10000 Vortex Filter System
Ref: MB10ASSY
Parts to assemble a Pump Fed 10000 Vortex Filter includes 25watt UV, Media and Drains

Does Not Include Pump

PLEASE NOTE Lids are no longer supplied with these units


Price: £667.01 (Including VAT at 20%)



KF18000V Multibay Filter with Integral Vortex - WITH MEDIA
KF18000V Multibay Filter with Integral Vortex - WITH MEDIA Ref: KFMBVNM
The KF18,000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber design ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of 18,000 litres and a maximum flow rate of 11,000 litres per hour. However, with lighter stocking densities or in fish free ponds the KF18,000 will comfortably cope with much larger volumes. The integral Vortex enhances the unit's performance and reduces the maintenance intervals

The media package consists of:

Bay 1 Eighteen 16" long x 8" diameter polypropylene filter brushes - They are of a semi-rigid construction with a wire loop at the end for easy cleaning.

Bay 2 Blue matting - This is an excellent filter media as it has a large surface area giving it an excellent bio-mass retention. Its open texture removes larger particles from the water.

Bay 3 Three layers of reticulated foam with different density of porosity of each layer. This is on top of a layer of approximately 2 cubic foot of flocor.

Bay 4 Six way foam block manifold assembly on top of six cubic foot of Flocor. The large surface area of Flocor tubes makes it an ideal filter media.

Specifications

102 ” long x 33” wide x 32” Deep
Maximum flow rate 11,000 litre per hour
Three drainage points - (Accepts 1.5" solvent weld pipe for remote drainage)
Supplied with 3 x 1.5" Kockney Koi Ball Valves (Not shown)
The gravity fed model has a 4" inlet and 1.5" outlet where the pump fed model has a 1.5" inlet and 4" outlet.

NOTE Media supplied only where specified in price options,

PLEASE NOTE Lids are no longer supplied with these units

Please Note at this time we can only offer Delivery Charges on line to addresses in England (excluding Cornwall). For all other Areas please Call 01925 639333 to Obtain Delivery Charges. Delivery Dates can be 7 to 10 days for this item


Select Filter Option

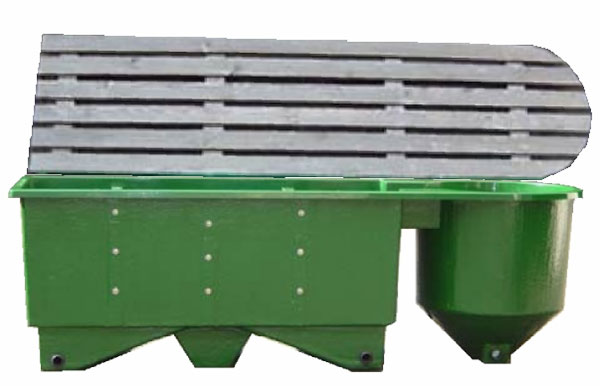

KF18000V Multibay Filter with Integral Vortex - NO MEDIA
KF18000V Multibay Filter with Integral Vortex - NO MEDIA Ref: KFMBVWM
The KF18,000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber design ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of 18,000 litres and a maximum flow rate of 11,000 litres per hour. However, with lighter stocking densities or in fish free ponds the KF18,000 will comfortably cope with much larger volumes. The integral Vortex enhances the unit's performance and reduces the maintenance intervals

A media package is not supplied with this option

Specifications

102 ” long x 33” wide x 32” Deep
Maximum flow rate 11,000 litre per hour
Three drainage points - (Accepts 1.5" solvent weld pipe for remote drainage)
Supplied with 3 x 1.5" Kockney Koi Ball Valves (Not shown)
The gravity fed model has a 4" inlet and 1.5" outlet where the pump fed model has a 1.5" inlet and 4" outlet.

NOTE No Media or Lid is supplied with this Option.

Please Note at this time we can only offer Delivery Charges on line to addresses in England (excluding Cornwall). For all other Areas please Call 01925 639333 to Obtain Delivery Charges. Delivery Dates can be 7 to 10 days for this item


Select Filter Option


Pump Fed 18000 Vortex Filter System

Pump Fed 18000 Vortex Filter System
Ref: MB18ASSY
Parts to assemble a Pump Fed 18000 Vortex Filter includes 55watt UV, Media and Drains

Does Not Include Pump

PLEASE NOTE Lids are no longer supplied with these units


Price: £1,129.91 (Including VAT at 20%)



KF20000 Multibay Filter
KF20000 Multibay Filter Ref: MBVKF20

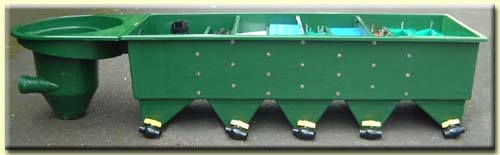

The KF20000 (shown above) is an eight chamber fibreglass design that can be used for gravity or pump feed. This is currently the largest single unit in the Yamitsu Range. Its clever design enables it to fit through a standard 30" domestic door opening (if required) so it can be transported through the house for those properties where there is no side or rear access.

The KF20000 shown above has our smallest optional vortex
Note: The larger vortex units are deeper and have a larger diameter.
We manufacture Vortex units suitable from 2,500 to 5,000 gallons.

If you wish to pump feed a vortex filter system with a gravity return please ask your dealer to order this as a special order. These can normally be supplied within 14 working days.

20000 Litre (8 Bay) 85.5” x 31.5” x 24.5” Deep

Maximum flow rate 10,000 litre per hour

Single unit will suit either pump or gravity fed

Contains: l5 drains, 5 Ball Valves and media
Suits pipe sizes of 110mm and 1.5"
Media comprises: alfagrog, flocor, filter wadding, foamcartridge, green matting cartridge, blue matting cartridge and two bays of different graded brushes

The KF20000 priced below does not include the vortex unit. Please select the most apprpriate Vortex Unit from those shown below

NOTE Media supplied only where specified in price options,

PLEASE NOTE Lids are no longer supplied with these units


Select Filter Option



VF1 Vortex unit for KF20000 Filter

VF1 Vortex unit for KF20000 Filter
Ref: OVF1
The VF1 is ideal for flow rates up to 1000 gallons per hour (gph), (4500litres/hour)

Price includes delivery when ordered at same time as KF20000 Filter


Price: £145.00 (Including VAT at 20%)



VF2 Vortex unit for KF20000 Filter

VF2 Vortex unit for KF20000 Filter
Ref: OVF2
The Kockney Koi VF range of Vortexs are made from long lasting, high quality fibreglass. The VF2 is ideal for flow rates up to 2000 gallons per hour (gph), 9000 litres/hour

Price includes delivery when ordered at same time as KF20000 Filter


Price: £235.00 (Including VAT at 20%)



VF3 Vortex unit for KF20000 Filter

VF3 Vortex unit for KF20000 Filter
Ref: OVF3
The Kockney Koi VF range of Vortexs are made from long lasting, high quality fibreglass. The VF2 is ideal for flow rates up to 3000 gallons per hour (gph), 13500 litres/hour. Note this is higher than the rated flow of the filter

Price includes delivery when ordered at same time as KF20000 Filter


Price: £315.00 (Including VAT at 20%)



KF45000 Multibay Filter
KF45000 Multibay Filter Ref: MBVKF45
If you are fortunate enough to have a large pond (10,000 Gallons or 45,000 Litres) and need a high quality, heavy duty filtration system to keep your fish healthy and your water clear, Yamitsu have the ideal system for you to install. For larger systems use multiple units.

Unit Sizes
Larger unit including Vortex chamber (PC1)= 102 inches (length) x 33 inches (width) x 32 inches (depth)
Smaller unit (PC2) = 68 inches (length) x 33 inches (width) x 32 inches (depth)

This system is ideal for 10,000 gallon Koi pond or 12,000 gallon Garden pond. It comes complete with all media and ball valves and can be pump or gravity fed. Upto 5,000 Gallons per hour pump size and can be supplied with fitted 55w UV (pump fed only).


UV Not Included in Price

PLEASE NOTE Lids are no longer supplied with these units
