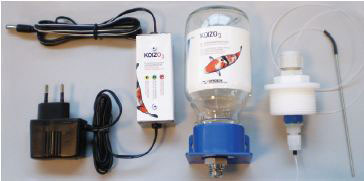

Aquaforte KOIZO³ Ozone Cell

Aquaforte KOIZO³ Ozone Cell
Ref: AFKOIZO3


The worlds 1st ultra compact low-voltage ozone generator for reducing algae & germs

Ozone has traditionally been a topic of hot debate among professional koi keepers. The fact is that ozone possesses oads of highly valuable characteristics, it removes colourants from the water; it converts toxic nitrite into relatively harmless nitrate; it removes bacteria, viruses and other pathogens; it kills green algae; and it raises the oxygen content of the water.

The Ozone Micro Cell is supplied with a Soft Water Module. This unit has to be filled with distilled/deionized water. The cell core is fitted directly into the module so the cells are only in contact with pure water. The ozone produced leaves the module through a small stainless steel capillary pipe that holds an ozone hose. This ozone hose has a 3/8" fitting to connect with the pond pipe system to perform its oxidizing cycle. The only maintenance required is refilling the module with distilled water.

The life-span of the ozone cells in this module is extended to at least one year!

An additional benefit is the user can see the cell continuously at work by means of the rising ozone bubbles. The Soft Water Module is supplied with a handy wall bracket for easy installation.

The Ozone Micro Cell KOIZO³ 4 Cells is now standard equipped with this module.




Price: 453.60 (Including VAT at 20%)



Aquaforte Soft Water Module

Aquaforte Soft Water Module
Ref: AFSWM


Soft Water Module.

This unit has to be filled with distilled/deionized water. The cell core is fitted directly into the module so the cells are only in contact with pure water. The ozone produced leaves the module through a small stainless steel capillary pipe that holds an ozone hose. This ozone hose has a 3/8" fitting to connect with the pond pipe system to perform its oxidizing cycle. The only maintenance required is refilling the module with distilled water. The life-span of the ozone cells in this module is extended to at least one year! An additional benefit is the user can see the cell continuously at work by means of the rising ozone bubbles. The Soft Water Module is supplied with a handy wall bracket for easy installation.

The Ozone Micro Cell KOIZO³ 4 Cells is now standard equipped with this module


Price: 101.17 (Including VAT at 20%)



Aquaforte Cell Core- Replacement

Aquaforte Cell Core- Replacement
Ref: AFOCC


Replacement Cell Core 4 pieces


Price: 73.40 (Including VAT at 20%)



Aquaforte Ozone Reactor

Aquaforte Ozone Reactor
Ref: AFOR


Compact ozone reactor with a special compartment for activated carbon to destroy residual ozone. Ideal for removing (yellow/brown) colorants from the water with the use of ozone. Ozone generator is not included! Suited for ozone generators up to 500mg/h. Use pre-filtered water! Inlet: 40mm, outlet: 50mm. Procedure: water & ozone enter the mixing chamber through a venturi. The water then showers down the small holes into the reaction chamber where the ozone can do its job. The reaction chamber is fitted with a hose connector to re-use residual ozone from this area and mix it once more with the water inlet. The unit also has a residual ozone destroyer for outgoing air that can be filled with activated carbon. The water has to leave the system through the activated carbon chamber which will remove any residual ozone from the water. Replace activated carbon every 3 months! The inlet chamber and activated carbon chamber are easy accessible for maintenance.

Total height: 58cm. Diameter: 250mm.

Max. flow: 5m³/h.




Aquajet 2000 Venturi

Aquajet 2000 Venturi
Ref: AQUAJET
These Venturi simply connect to the return pipework to the koi pond . As the water passes through the Venturi it draws in air from the atmosphere or Ozone from an Ozone Generator
There are two funnels supplied with the kit a small one and a large one. Depending on the output of the pump one of these is just pushed into the rear of the main body of the venturi. A simple but very effective way of increasing the oxygen levels in your koi pond or pumped filter system.

Size Can be fitted in to a 1½ waste socket

Note Can be fitted in any pumped line. It will not work in a gravity fed line.


Price: 18.00 (Including VAT at 20%)
